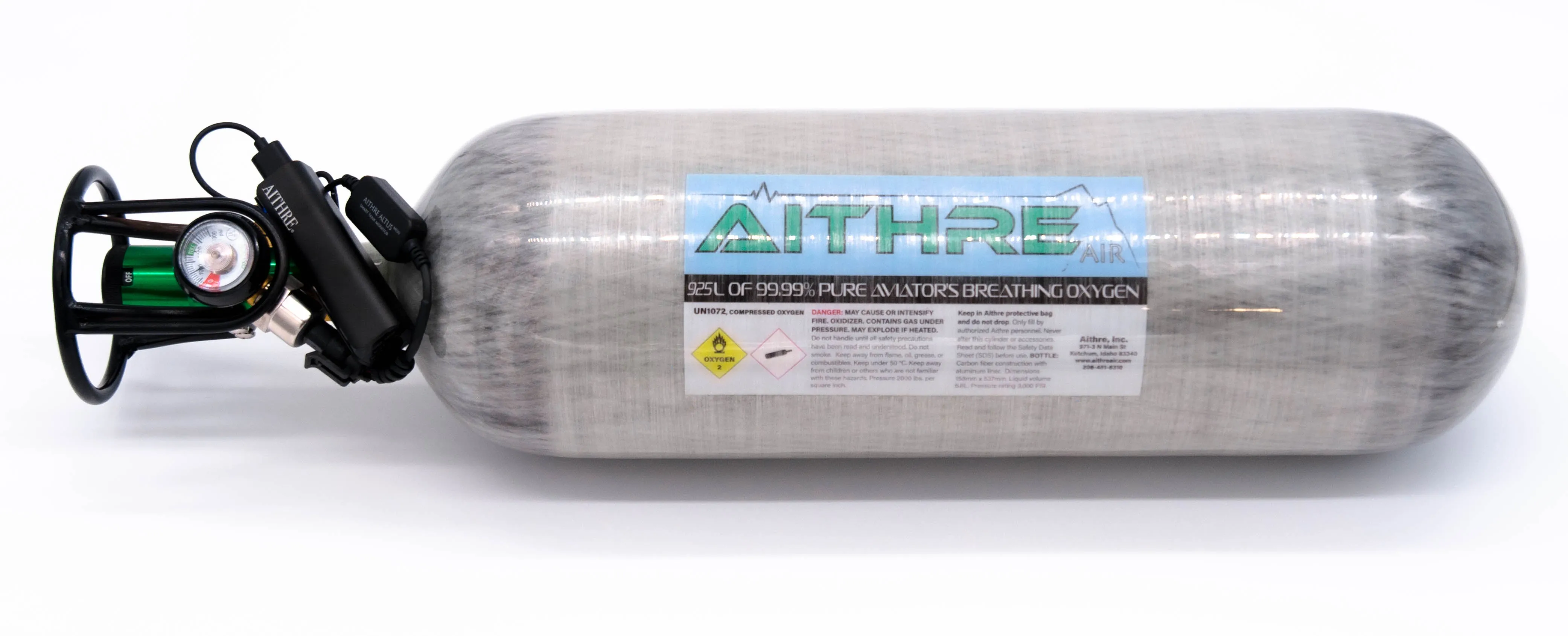

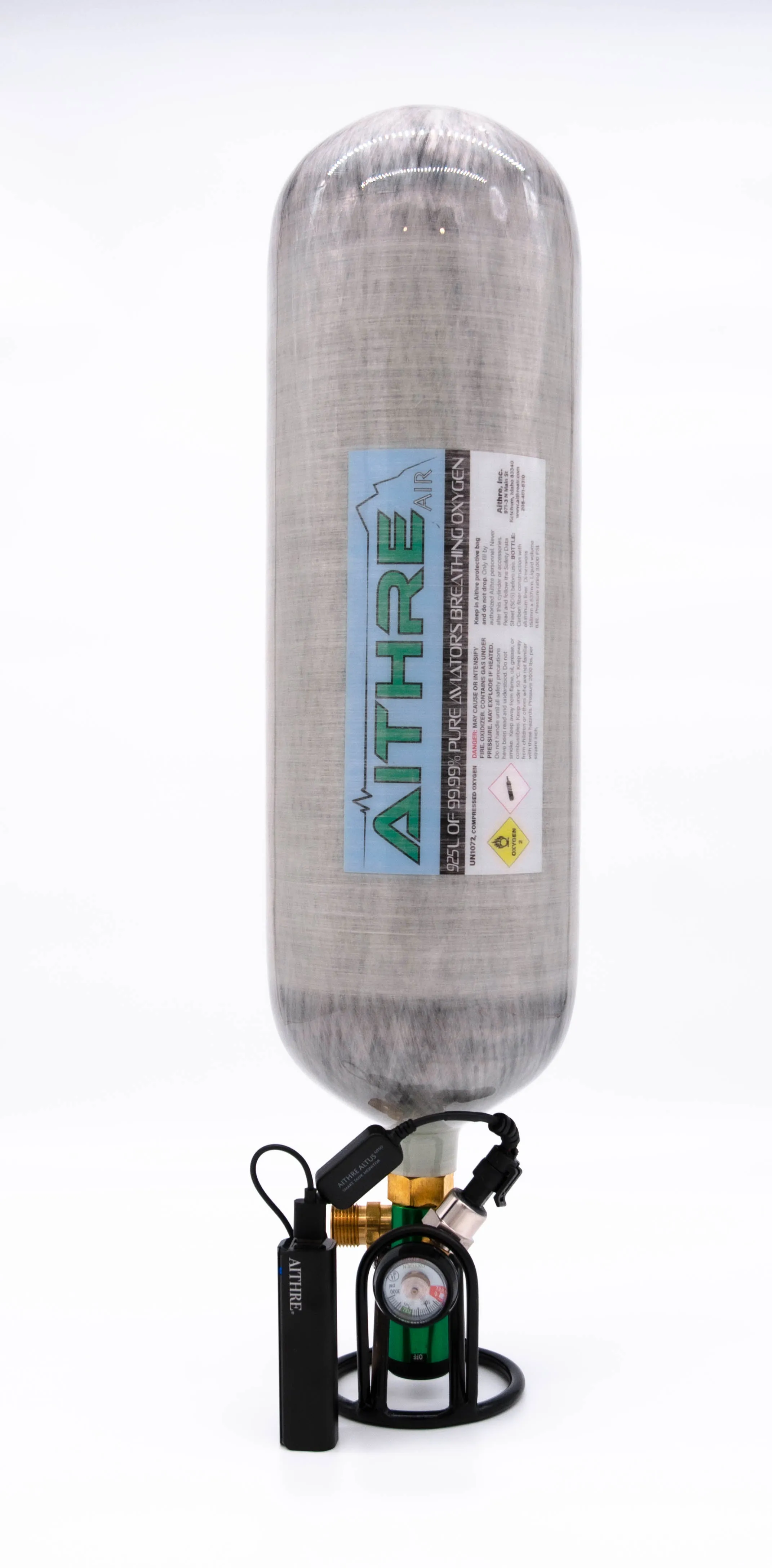

The Aithre personal oxygen bottle is constructed from lightweight composite carbon fiber with an aluminum lining and is designed for private aviation. Offering a 2000 PSI working pressure, simple on-off gauge, and an adjustable flow regulator, this bottle is ideal for pilots in private GA aircraft with flow rates as high as 25 LPM.
The Aithre oxygen bottle is refillable and can store 925 L of compressed oxygen at 2000 PSI. This is 30 hours of continuous flow at 0.5 LPM. Less duration will be observed at higher flow rates and higher duration will be observed at lower flow rates.
This oxygen bottle package includes the bottle itself, an easy-operate Aithre adjustable flow regulator with the Altus Meso smart wireless pressure sensor, a Uni-flo2 cannula, and two rubber quick release straps for securing the bottle.

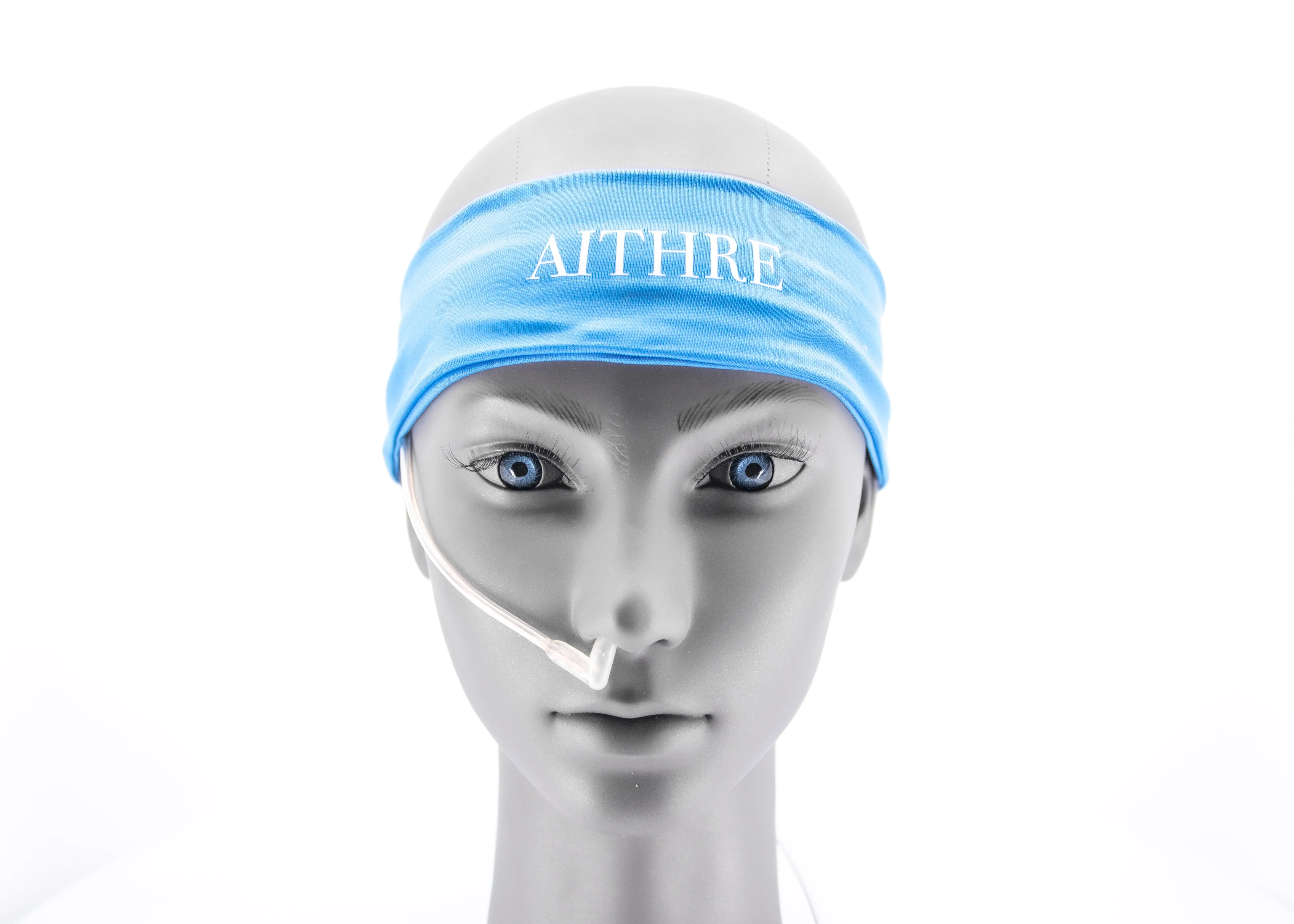

The Uni-flo2 cannula is an innovative single-prong nasal cannula that can be inserted in one nostril for comfortable easy application. A unique copper wire insert within the tubing adds conformability and shape memory comfort. We've tested the Uni-flo2 to 15k MSL on a single nostril with SPO2 rates above 92%.
The Aithre adjustable flow regulator is a unique combined regulator-valve with a simple dial flow adjuster from 0 to 25 LPM. The regulator includes a standard CGA-540 fill port, but it is one-way and doesn't require removal of any parts to fill. An elegant metal handle provides enhanced protection against impact. There are two output ports on the handle. The first output port is a hose barb quick connect that allows for a first level of flow setting (e.g. 0.5-25 LPM) with an easy direct cannula connection. The second output port is an always-on bypass quick connect plug for use with a MH-3 flow meter to allow for additional fine tune adjustment of the constant flow rate (sold separately).

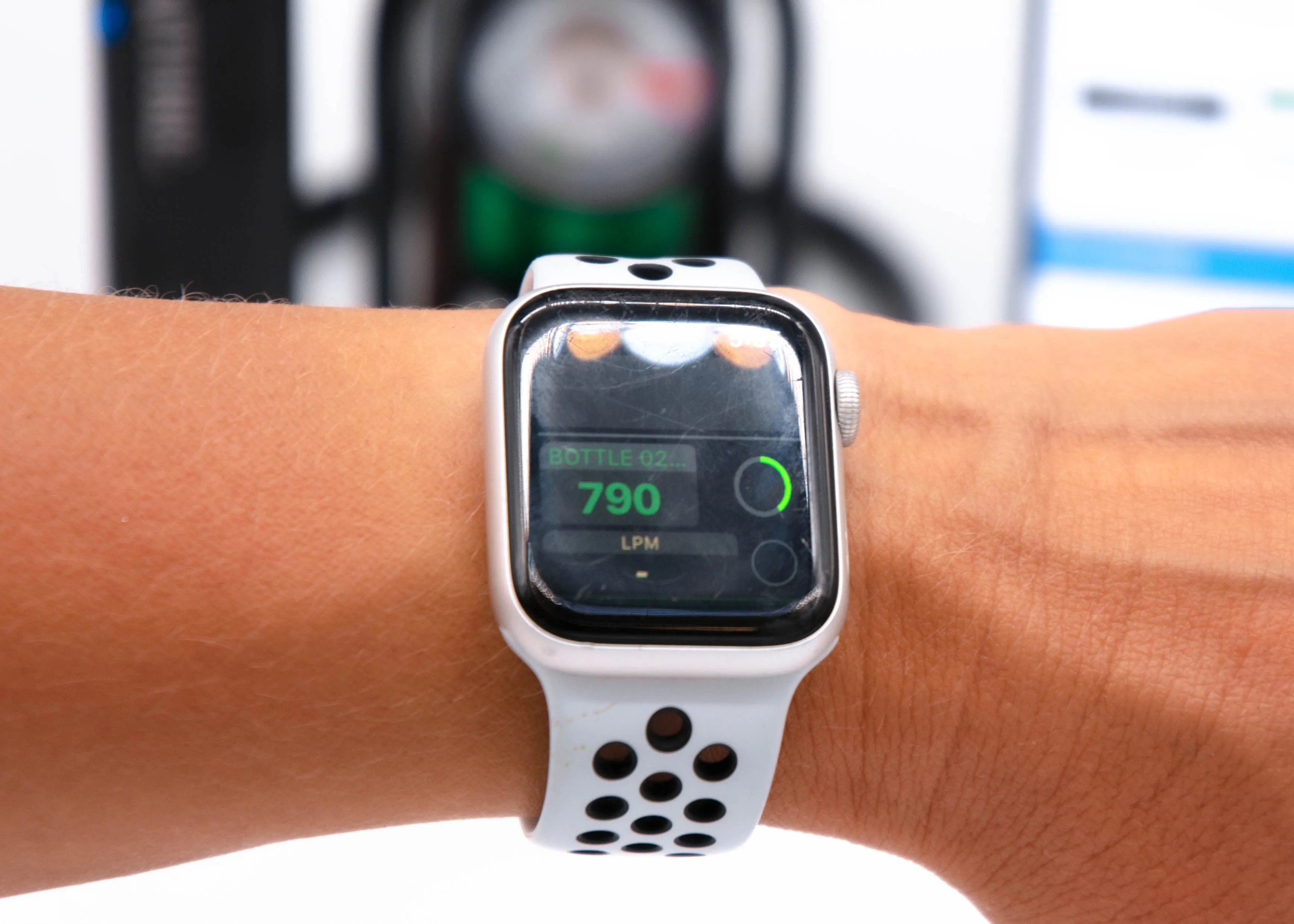

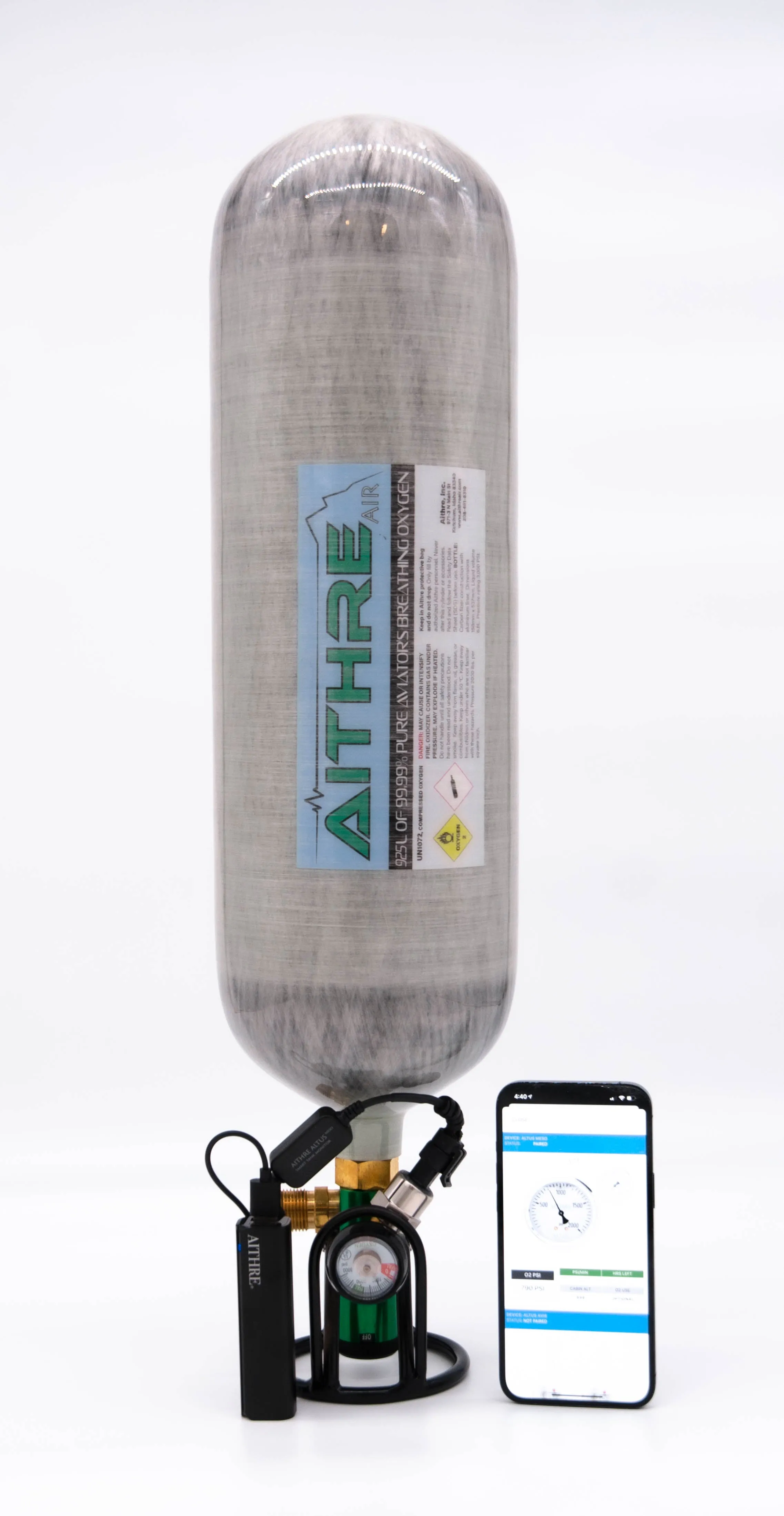

The regulator includes the standard pressure gauge, and also the Aithre Altus Meso wireless tank pressure gauge for use with the Aithre Connect app. This provides 0-2500 PSI readings to your iOS device in increments of 10 PSI to permit monitoring of your oxygen bottle. The PSI can be displayed on your Garmin G3x or Dynon Skyview when using the companion Aithre Shield EX 3.0 carbon monoxide detector.
The Aithre carbon fiber bottle comes with CE certification to ISO 11119-3 safety standards. It is extremely lightweight with the combined bottle and regulator weighing just over 4 lbs (most of the weight is attributed to the regulator itself). The bottle features a high-gloss finish and grey color that pops.
PRICE INCLUDES
- Carbon fiber/aluminum bottle
- Easy-operate Aithre adjustable flow regulator with simple 0-25 LPM dial control, hose barb, direct access quick connect port, built-in valve, and one-way standard CGA-540 fill port
- Uni-flo2 single-prong cannula
- Altus Meso smart pressure gauge
- Aithre USB Power Supply
- Two rubber quick release straps
BOTTLE SHIPPED EMPTY
- No oxygen is contained in the bottle when shipped
- Fill yourself using transfilling equipment or at an FBO using standard CGA-540 fill port
BOTTLE SPECIFICATIONS
- Carbon fiber & aluminum construction
- 6.2 inches x 25.5 inches overall
- 14 lbs (filled)
- 922 L oxygen volume @ 2000 PSI (6.8 L liquid volume)
- 30 hours continuous flow time @ 0.5 LPM
- 2000 PSI working pressure
- 3000 PSI maximum rating
- 15 year bottle service life (retesting every 5 years)
- Adjustable flow rate 0-25 LPM
- Hose barb primary quick connect for standard cannula
- Quick connect plug for MH-3 flow meter (sold separately)
- Wireless & manual pressure gauge
REGULATION NOTICES
- CE Certificate: Bottle certified CE 1282 and inspected/tested to ISO11119-3 international standards
- NOT DOT approved: Carrier shipment in the U.S. requires the bottle to be empty with no pressure and no compressed oxygen (a special permit is pending with the DOT for future carrier shipment)
- Personal portable use only - not approved for commercial use
- Not approved for commercial flight: No gas cylinder of any type can be carried or checked on commercial flights with very limited exceptions
- Not FDA approved for medical: Do not use to treat or prevent a disease or for any medical purpose.
.
